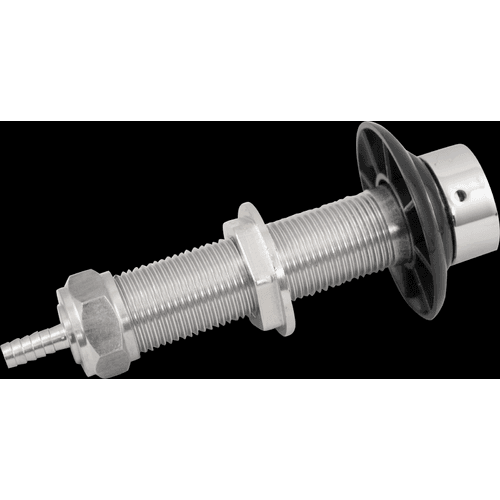

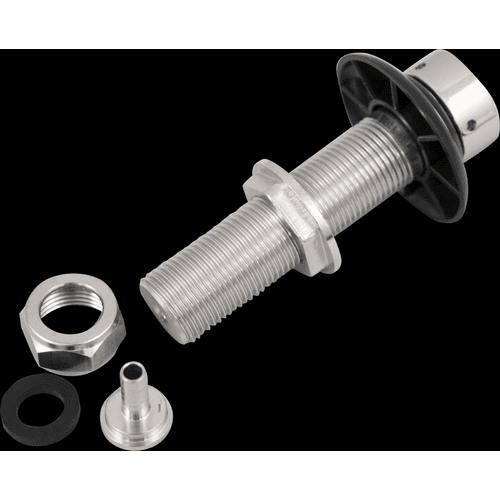

This 4″ shank is useful for draught towers, jockey boxes, or kegerators. Comes with a back nut, plastic collar, hex nut, and a 1/4″ barb. Requires a 1″ hole saw for installation.
Installation note: On a fridge there is generally no coolant lines running through the door but please check to see there are no lines connecting the door and the rest of the refrigerator. To test for coolant lines on a freezer start with a warm freezer then plug the unit in with the lid open. You should be able to see the lines form condensation on the inside of the freezer where there are lines running. Please still use caution when drilling.
Dimensions:
- 5-1/4″ – Total Length (Tip to Tip)

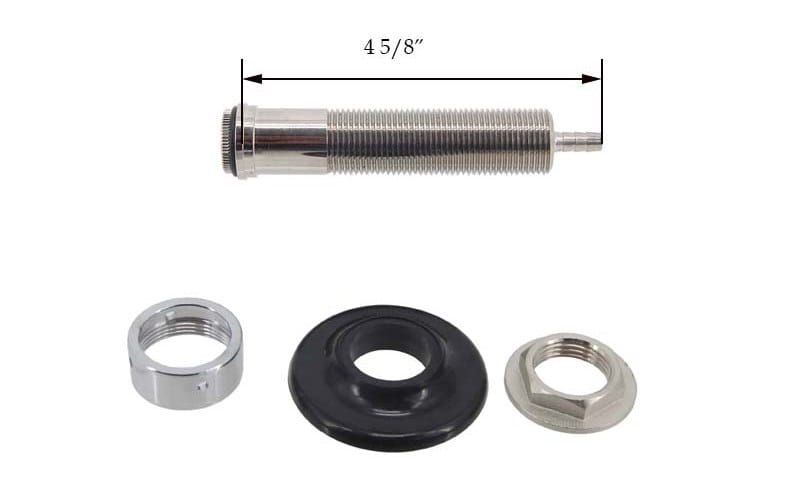

- 4-5/8″ – Collar to Barb Tip
- 4-1/8″ – Shank Length (Without Nut & Nipple)
- 3″ – Thread Length
- 2-3/4″ – Pass Through Length
- 1/4” – Bore
